CPEBOX
5G NR Outdoor CPE
Powered by Qualcomm chipset the NR outdoor CPE provides best-in-class high performance throughput with 4x4 MIMO/100MHz BW for sub-6G and 2x2 MIMO/800MHz BW for mmWave design. The sub-6G model supports band of n40/n41/n77/n78/n79 for TDD and n1/n2/n3/n7/n8/n12/n20/n28/n66 for FDD. The mmWave model supports Band of n257/258/260/261. The peak rate speed is up to 4Gbps. It supports 3GPP Rel 15 SA&NSA standard, 4G/5G dual connectivity. It's built with POE and multi-rate Ethernet ports , IP67 outdoor design to easy deployment. Please contact us for specifications
Products

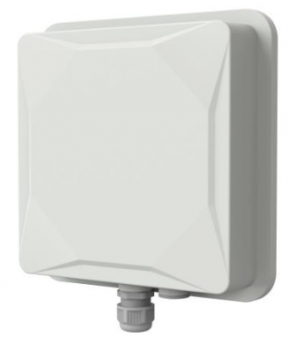

LTE-A Pro High Gain Outdoor CPE
Our top-norch TDD CAT15 LTE-A Pro outdoor CPE is designed to meet most challenging requirement and highest criteria from wireless carrier/operators. The built-in high gain antenna provide wide range of services.
- 3GPP Release 12, Category 15 Operation Mode : 4Rx, 2Tx, DL 4*4 MIMO
- CA : DL 2CA (4x4 MIMO 64 QAM); DL 4CA (2x2 MIMO 256QAM); UL 2CA(64QAM);
- MIMO : DL 2x2 MIMO (4CA); DL 4x4 MIMO(2CA); UL 2x2 MIMO;
- Frequency Band : B38/B40/B41/B42/B43/B48/B55
- Output Power : 23dBm per Tx
- Antenna Gain : 13dBi (4 antenna model) 17dBi (2 antenna model)

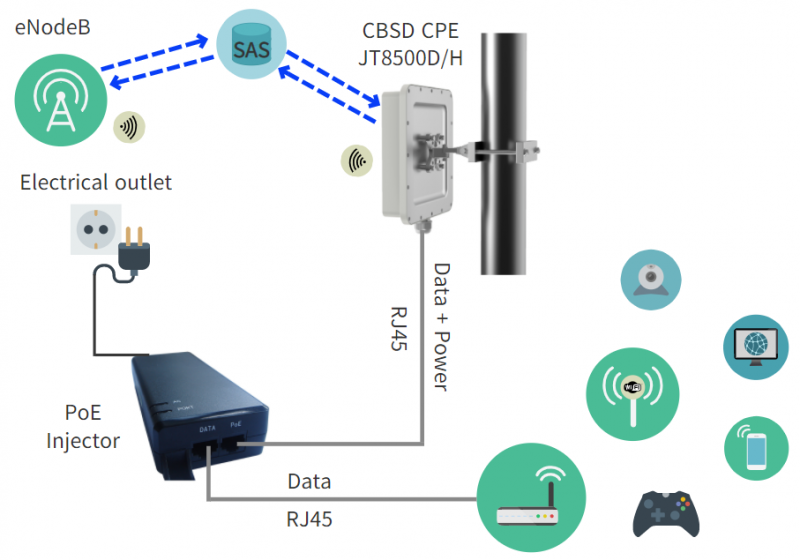

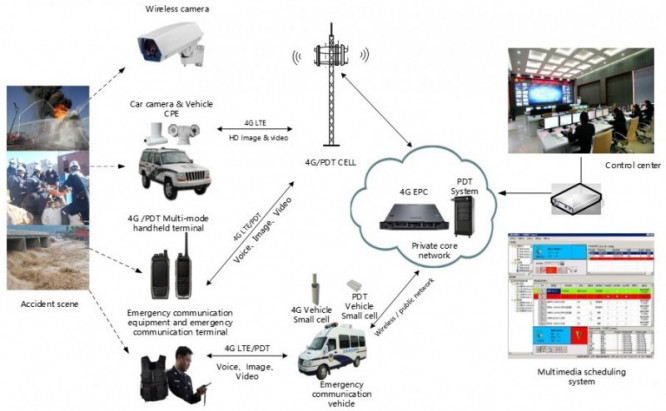

LTE CBRS/LTE-U Private Network Solution
Please reach our sales team for more information.
LTE Radio Interface
Radio Access : 3GPP Release 11, Category 7
Channel Banwidth:5/10/20MHz and CA support
Operation Mode : TDD 4Rx, 2Tx, or 2Tx 2Rx
DL 4*4 MIMO, UL 2*2 MIMO QAM64
DL 2*2 MIMO CA(2CC), UL 2*2 MIMO QAM64
Frequency Band : B41
Max Tx Power : 23dBm per antenna port
Antenna Gain : B41 : 14dBi(2*2CA)
B41 : 10dBi(4*4 MIMO)
SIM Card : Single SIM card slot ( 2FF)
Management: Telnet, Http, Https and standard TR 069 interfaces
Multiple PDN and Operator Support , FCC UL Certified
LTE Radio Interface
Radio Access : 3GPP Release 12, Category 15
Operation Mode : 4Rx, 2Tx, DL 4*4 MIMO
CA : DL 2CA (4x4 MIMO 64 QAM);
DL 4CA (2x2 MIMO 256QAM);
UL 2CA(64QAM);
MIMO : DL 2x2 MIMO (4CA);
DL 4x4 MIMO(2CA);
UL 2x2 MIMO;
Frequency Band : TDD B38/B40/B41/B42/B43/B48/B55
Output Power : 23dBm per Tx
Antenna Gain : 13dBi (4 antenna model)
17dBi (2 antenna model)
FCC/UL Certified
LTE CAT 7 Outdoor
LTE-A Pro CAT 15 Outdoor
